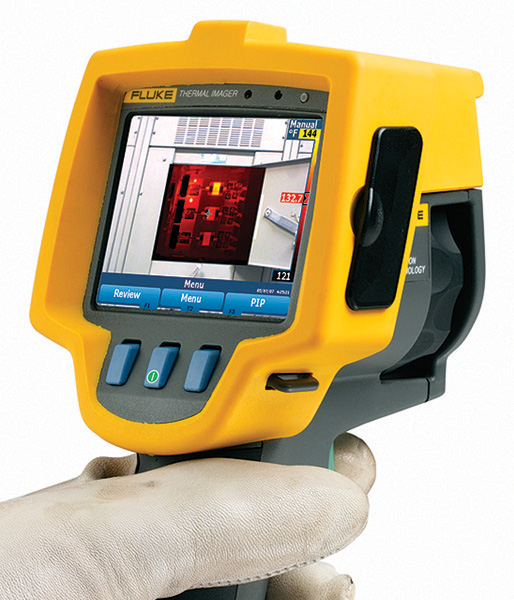

The affordable Fluke Ti25™ Thermal Imager is the ultimate tool for troubleshooting and maintenance
The perfect tool to add to your problem solving arsenal. Built for tough work environments, this high-performance, fully radiometric imager is ideal for troubleshooting electrical installations, electro-mechanical equipment, process equipment, HVAC/R equipment and other applications.
Features:
Comes with patent-pending IR-Fusion® Technology, which provides enhanced problem detection and analysis capabilities through the blending of visual and infrared images in various different viewing modes; including Full IR thermal, picture-in-picture, or automatic blend visual and thermal images.
Rugged and Reliable…Optimized for use in harsh work environments.
Engineered and tested to withstand a 2 m (6.5 ft) drop—When was the last time you dropped a tool?
Resistant to dust and water—tested to an IP54 rating.
Delivers the clear, crisp images needed to find problems fast.
Identify even small temperature differences that could indicate problems with excellent thermal sensitivity (NETD).
Intuitive, three-button menu is easy to use—simply navigate with the push of a thumb.
No need to carry pen and paper—record findings by speaking into the camera. Voice annotations can be recorded with every image you take. Voice comments are saved along with individual images for future reference.

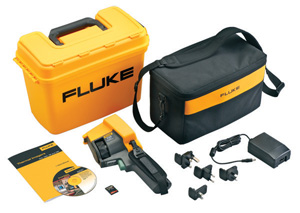

Everything needed to get started is included… including the powerful, easy-to-use SmartView™ full analysis and reporting software.
Manufactured in the U.S.A.
Two-year manufacturers warranty
Specifications:
Field of View (FOV): 23° horizontal x 17° vertical
Minimum focus distance: Thermal lens: 15 cm (approx. 6 in), Visible (visual) light lens: 46 cm (approx. 18 in)
Thermal sensitivity (NETD): ≤0.1 °C at 30 ° C (100 mK)
Detector size: 160 x 120
IR-Fusion® On camera operating modes: Picture-in-Picture (Blending is user selectable between MAX, MED and MIN) and full screen IR (Blending is user selectable
between MAX, MED and MIN)
Temperature Measurement range: -20 °C to +350 °C (-4 °F to +662 °F), 2 ranges
Accuracy: ± 2 °C o r 2 % (whichever is greater)
Digital display: 9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD
LCD backlight: Selectable bright or auto
Palettes: Ironbow, blue-red, high contrast, amber, hot metal, grey
Storage medium: 2GB SD card stores up to 3000 .bmp IR images or 1200 .IS2 IR-Fusion images
File formats supported: Exportable to JPEG, BMP, GIF, PNG, TIFF, WMF EXIF, and EMF
Voice memo recorder (voice annotation): Yes
Battery type: Internal rechargeable battery (included)
Battery charging: 2 hours with ac charger or dc car charger (charges battery while operating)
AC operation: AC adapter/charger 110/230 V ac, 50/60 Hz
IR-Fusion® Technology:
See things both ways—infrared and visual (visible light) images fused together communicating critical information faster and easier—traditional infrared images are no longer enough. IR-Fusion, a patent-pending technology that simultaneously captures a digital photo in addition to the infrared image and fuses it together taking the mystery out of IR image analysis. IR-Fusion is standard on Fluke Ti25. Click on image below to see IR-Fusion in action!
View Product Specifications (PDF)
View Product Brochure (PDF)
